1.1 What is an exception?#

An exception is an unexpected or anomalous situation that occurs during program execution, interrupting the normal flow of instructions. For example, division by zero, memory allocation failure, or a file not being found can all raise exceptions. If not handled, an exception typically leads to program termination.

Exception handling provides a structured way to detect and respond to these error conditions, enabling programs to run more robustly or at least fail in a controlled manner (e.g., by saving data before exiting).

1.2 C++ Exception Handling Mechanism: try, throw, catch#

C++ provides the following three keywords to support exception handling:

• try: A try block encloses code that might throw an exception. If code within a try block throws an exception, control is immediately transferred to an appropriate catch block.
• throw: When an error condition is detected, a throw expression can be used to “throw” an exception. What is thrown can be a value (like an integer or a string literal) or an object (typically an object of an exception class).
• catch: A catch block immediately follows a try block and is used to catch and handle a specific type of exception. There can be multiple catch blocks to handle different types of exceptions. catch(...) can catch any type of exception.

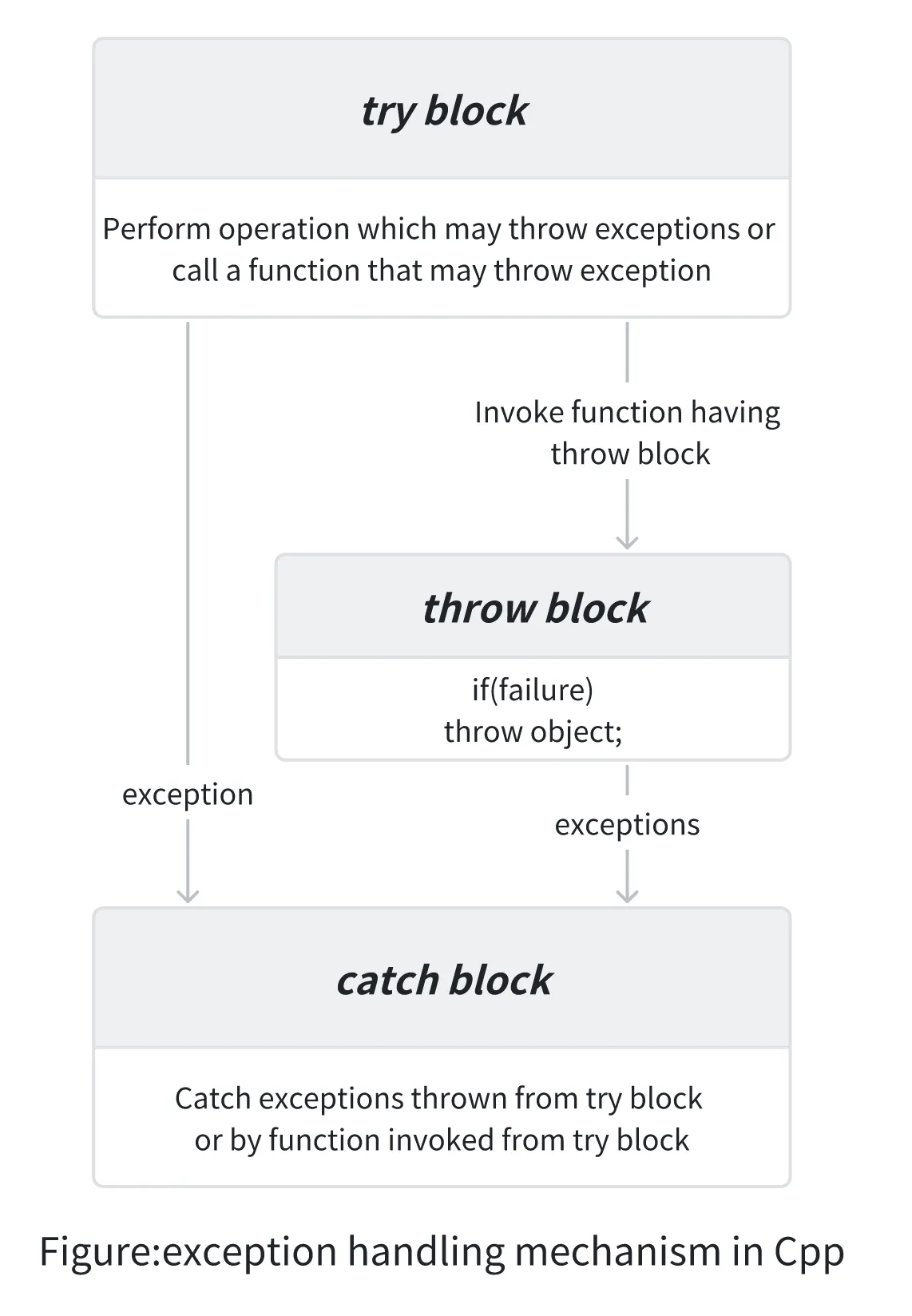

Basic Flow:

1. Program execution enters a try block.
2. If a throw statement is executed within the try block (or in a function called from the try block), an exception is thrown.
3. The program immediately exits the current execution path and starts looking for a catch block that matches the type of the thrown exception.
4. catch blocks are examined in the order they appear. The first catch block whose parameter type matches the thrown exception (or can be converted from the thrown exception type) is executed.
5. If a matching catch block is found, the code within that block is executed. After execution, the program typically continues with the code following the last catch block (unless the catch block itself re-throws an exception or terminates the program).
6. If no matching catch block is found, the exception propagates up the call stack until it is caught somewhere, or if it reaches the main function and is still unhandled, the program usually calls std::terminate() to halt.

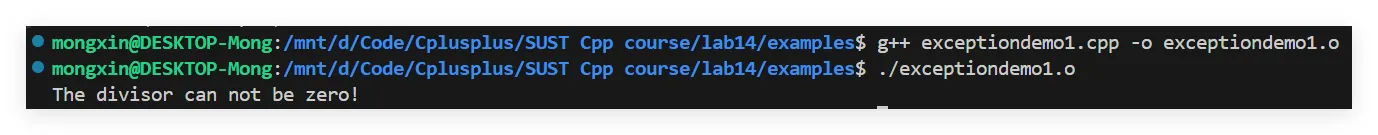

Example 1: Throwing an exception in main’s try block

#include <iostream>

int main() {
    int a = 5, b = 0;
    double d;
    try {
        if (b == 0) {
            throw "The divisor can not be zero!"; // Throwing a C-style string
        }
        d = static_cast<double>(a) / b;
        std::cout << "The quotient of " << a << "/" << b << " is: " << d << std::endl;
    } catch (const char* p_error) { // Catches const char* type exceptions
        std::cerr << p_error << std::endl;
    } catch (int error_code) { // Catches int type exceptions (won't match here)
        std::cerr << "Exception code: " << error_code << std::endl;
    }
    return 0;
}

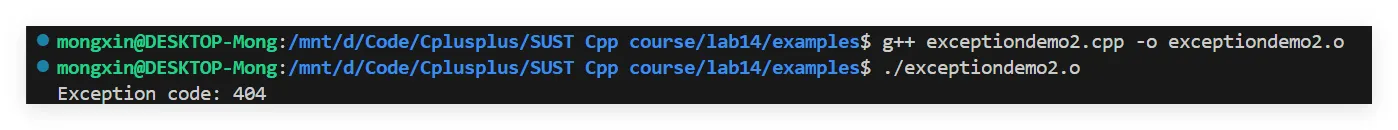

Example 2: Throwing an exception in another function, handled by catch in main

#include <iostream>

double Quotient(int a, int b) {
    if (b == 0) {
        throw 404; // Throwing an int type exception
    }
    return static_cast<double>(a) / b;
}

int main() {
    int a = 5, b = 0;
    double d;
    try {
        d = Quotient(a, b);
        std::cout << "The quotient of " << a << "/" << b << " is: " << d << std::endl;
    } catch (const char* p_error) {
        std::cerr << p_error << std::endl;
    } catch (int error_code) { // Matches the thrown int type exception
        std::cerr << "Exception code: " << error_code << std::endl;
    }
    return 0;
}

NOTE

In general, no implicit type conversions are applied when matching exceptions to catch clauses (though inheritance-based conversions are an exception, discussed later). If the thrown exception type DOSE NOT match any catch clause’s parameter type, the program will terminate.

1.3 Exception Handling and Resource Management (RAII)#

When an exception occurs, the code between the exception point in the try block and the beginning of the catch block (including destructors of objects in the current scope) is executed. This process is called stack unwinding. This is very important for automatic resource management.

RAII (Resource Acquisition Is Initialization) is a common C++ programming paradigm that binds the lifecycle of a resource to the lifecycle of an object. Resources are acquired during object construction and released during object destruction.

• If RAII is not used (e.g., manual new followed by delete at the end of a try block), an exception can prevent the delete from being executed, leading to a resource leak.

  Polygon *p = new Rectangle(4,5);
  p->printarea(); // If an exception is thrown here
  delete p;       // This line might not be executed

• Solution 1: Clean up in catch block and re-throw

  Polygon *p = new Rectangle(4,5);
  try {
      p->printarea();
  } catch (...) {
      delete p; // Clean up resource
      throw;    // Re-throw the exception for higher-level handling
  }
  delete p; // Clean up if no exception occurred

• Solution 2: Use Smart Pointers (Embodiment of RAII) Smart pointers (like std::unique_ptr or std::shared_ptr) automatically release the managed resource in their destructors. Even if an exception causes stack unwinding, the smart pointer’s destructor will be called, ensuring the resource is freed.

  std::shared_ptr<Polygon> sp(new Rectangle(10, 20));
  sp->printarea(); // If an exception is thrown here, sp's destructor will still be called,
                   // thereby deleting the Polygon object.

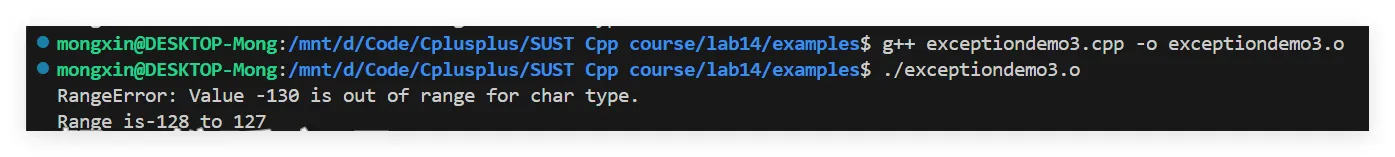

2.1 User-Defined Exception Classes#

We can define our own exception classes to represent specific error conditions.

#include <iostream>
#include <limits>
using namespace std;

class RangeError {
private:
    int val;
public:
    RangeError(int v) : val(v) {}
    int getValue() const { return val; }
};

char to_char(int n){
    if(n < numeric_limits<char>::min() || n > numeric_limits<char>::max()) {
        throw RangeError(n);
    }
    return (char)n;
}

void gain(int n){
    try{
        char c = to_char(n);
        cout << "The character representation of " << n << " is: " << c << endl;
    } catch (const RangeError& e) {
        cerr << "RangeError: Value " << e.getValue() << " is out of range for char type." << endl;
        cerr << "Range is" << (int) numeric_limits<char>::min() << " to "
             << (int) numeric_limits<char>::max() << endl;
    } catch (...) {
        cerr << "An unexpected error occurred." << endl;
    }
}

int main(){
    gain(-130);

    return 0;
}

Compilers may issue warnings for such ordering.

3.1 The std::exception Class and its what() Method#

std::exception is the base class for all standard C++ exceptions. It is defined in the <exception> header.

• It has an important virtual member function: virtual const char* what() const noexcept; (or throw() in older standards).
• The what() method returns a C-style string describing the exception. Derived classes typically override this method to provide more specific error information.

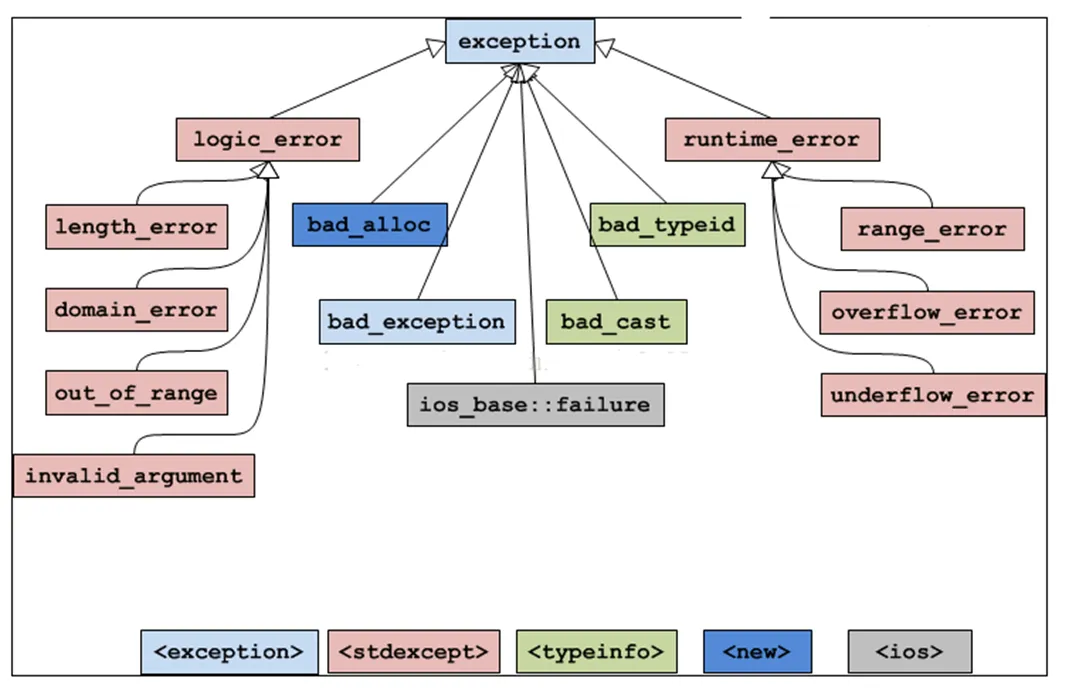

Example Standard Exception Class Hierarchy (Partial):

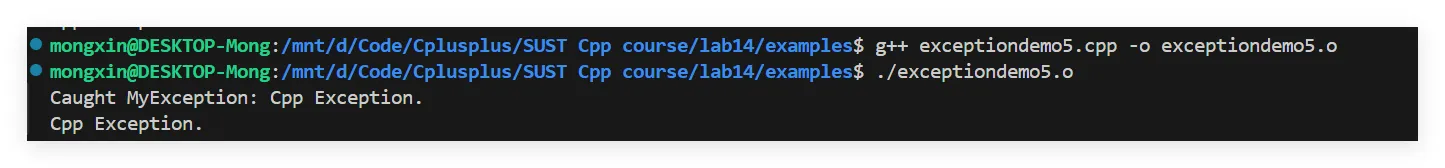

Custom Exception Class Inheriting from std::exception:

#include <iostream>
#include <exception> // For std::exception
#include <string>    // For std::string

class MyException : public std::exception {
private:
    std::string m_msg;
public:
    MyException(const std::string& msg) : m_msg(msg) {}

    // Override the what() method
    // C++11 and later recommend using noexcept
    const char* what() const noexcept override {
        return m_msg.c_str();
    }
};

int main() {
    try {
        throw MyException("Custom C++ Exception.");
    } catch (const MyException& me) { Catch derived class first
        std::cout << "MyException is caught." << std::endl;
        std::cout << me.what() << std::endl;
    } catch (const std::exception& e) { // Then catch base class
        std::cout << "Base class exception is caught." << std::endl;
        std::cout << e.what() << std::endl;
    }
    return 0;
}

3.2 The noexcept Specifier (C++11)#

noexcept is a function specifier that indicates that the function guarantees not to throw any exceptions.

• void func() noexcept; // func will not throw exceptions
• void func() noexcept(expression); // If expression is true, func will not throw exceptions
• noexcept (equivalent to noexcept(true)) and throw() (deprecated in C++17, removed in C++20) are equivalent.
• If a function declared noexcept actually throws an exception, the program calls std::terminate().
• Destructors, delete operators, and move operations (move constructors, move assignment operators) are implicitly noexcept unless explicitly specified otherwise or if functions they call might throw.

3.3 Throw by Value, Catch by Reference#

This is the recommended practice for handling exceptions:

• Throw by Value: throw MyException("Error");
  • This creates a copy (or move, if applicable) of the exception object to be passed to the catch block.
• Catch by Reference: catch (const MyException& e)
  • Avoids Object Slicing: If a base class exception is caught by value (catch (std::exception e)), and a derived class object was actually thrown, the derived-specific part of the object will be “sliced off.” e will only contain the base class part. Calling virtual functions (like e.what()) will call the base class version.
  • Avoids Unnecessary Copying: Catching by reference avoids another copy of the exception object.
  • Usually, catch a const reference, as the catch block should not modify the exception object.

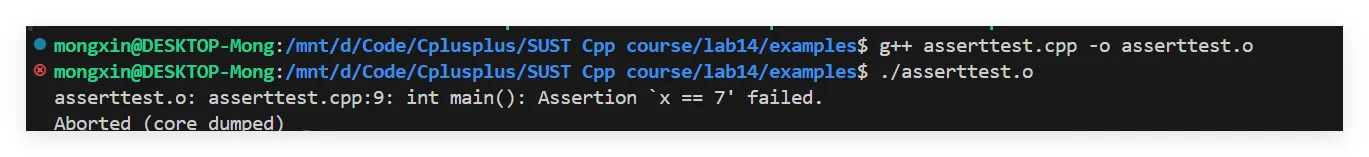

4.1 assert Macro Usage#

assert is a macro defined in <cassert> (C++) or <assert.h> (C).

• Syntax: assert(expression);

• Behavior:

  • If expression evaluates to false (0), assert outputs a message to the standard error stream (stderr) indicating the failed expression, source filename, and line number, and then calls std::abort() to terminate the program.
  • If expression is true (non-zero), assert does nothing.

  #include <cassert> // Or #include <assert.h>
  #include <iostream>



4.2 Purpose and Applicable Scenarios for Assertions#

• Purpose: Primarily used during development and debugging to catch logical errors or situations that should never occur. They validate the internal state of the program and the programmer’s assumptions.
• Applicable Scenarios:
  • Checking the validity of function arguments (preconditions).
  • Checking the validity of function return values (postconditions).
  • Checking loop invariants.
  • Verifying logically impossible situations in code.
• Considerations:

  • Each assert should ideally test only one condition, so it’s clear which condition failed if the assertion triggers.

    // Not recommended
     assert(nOffset >= 0 && nOffset + nSize <= m_nInformationSize);
    // Recommended
     assert(nOffset >= 0);
     assert(nOffset + nSize <= m_nInformationSize);

    • All assert calls can be removed at compile time by defining the macro NDEBUG (No Debug) before including <cassert>. This is typically done for release builds to avoid performance overhead and program termination due to assertions.

       #define NDEBUG // Place before #include <cassert>
       #include <cassert>

    • Assertions should not be used to handle expected runtime errors (like user input errors, file not found, etc.), which should be handled by exception handling or other error-handling mechanisms. Assertions are for programmer errors.

Exercise 1#

Are there any warnings in the program below when it is compiled? What do the warnings mean? Run the program regardless of warnings and explain the result to the TA. Fix the warnings and run the program again.

#include <iostream>
#include <string>
#include <exception> // For std::exception

// using namespace std; // Avoid in global scope

class MyException : public std::exception {
public:
    MyException(const std::string& msg) : m_msg(msg) {
        std::cout << "MyException::MyException - set m_msg to:" << m_msg << std::endl;
    }
    ~MyException() noexcept { // Destructors should generally be noexcept
        std::cout << "MyException::~MyException" << std::endl;
    }
    // what() should also be noexcept and marked override
    virtual const char* what() const noexcept override {
        std::cout << "MyException::what" << std::endl;
        return m_msg.c_str();
    }
    const std::string m_msg; // Better to make private and access via getter
};

void throwDerivedException() {
    std::cout << "throwDerivedException - thrown a derived exception" << std::endl;
    std::string exceptionMessage("MyException thrown");
    throw MyException(exceptionMessage); // Throw by value
}

void illustrateDerivedExceptionCatch() {
    std::cout << "illustrateDerivedExceptionsCatch - start" << std::endl;
    try {
        throwDerivedException();
    }
    // Warning: Base class catch block before derived class makes derived catch unreachable
    catch (const std::exception& e) { // Base class catch block
        std::cout << "illustrateDerivedExceptionsCatch - caught an std::exception, e.what:" << e.what() << std::endl;
    }
    // This catch block will never be executed because MyException will be caught by std::exception above
    catch (const MyException& e) { // Derived class catch block
        std::cout << "illustrateDerivedExceptionsCatch - caught a MyException, e.what::" << e.what() << std::endl;
    }
    std::cout << "illustrateDerivedExceptionsCatch - end" << std::endl;
}

int main(int argc, char** argv) {
    std::cout << "main - start" << std::endl;
    illustrateDerivedExceptionCatch();
    std::cout << "main - end" << std::endl;
    return 0;
}

Hints for Solution:

• Warning: The compiler will warn that the catch block for the derived class MyException is unreachable because it appears after the catch block for its base class std::exception.
• Runtime Result (with warning): MyException will be caught by catch (const std::exception& e) because MyException is a derived class of std::exception. e.what() will correctly call MyException::what() due to virtual function dispatch.
• Fix: Move the catch block for MyException before the catch block for std::exception.

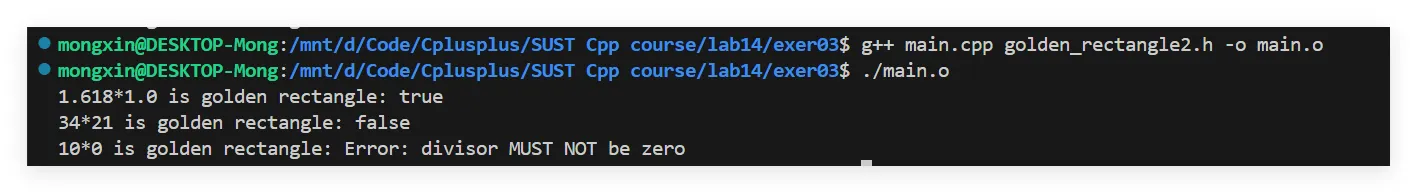

Exercise 2#

Define a generic class “GoldenRectangle” for a golden rectangle in the “golden_rectangle. h” , When testing based on the following main methods, the test results are shown in the bottom figure.

Except:
